MP Series Motorised UST Projector Draw Slider
Product Features
- Synchronised with any UST projector
- Max travel distance up to 800mm
- Max base width up to 600mm
- Max payload up to 30kg
- Control with your smartphone
- Aluminium alloy body, built to last
- Less than 30dB operating noise

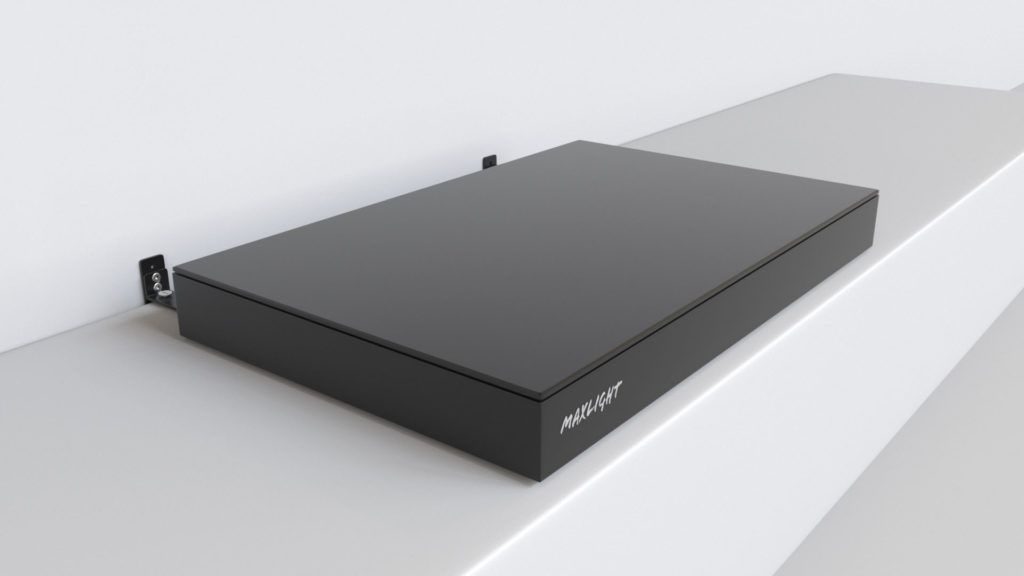

The MP series UST projector draw slider offers a fully automatic solution when the projector’s table is not deep enough. It has an intelligent control unit that syncs the draw slider with your projector. The draw slider extends to the pre-defined distance when your projector is switched on and vice versa.
The draw slider is Bluetooth enabled. Its extension distance can be precisely defined on your iPhone or Android smartphone, making the configuration process simple and quick.
EASY TO INSTALL
The fixing bracket can be installed upward or downward.
It can be fixed on your projector cabinet or wall for
maximum installation flexibility.
![](https://www.dhinnovation.co.uk/wp-content/uploads/2024/07/Maxlight-MP-UST-Draw-Slider01.jpg)
CONTROL WITH SMARTPHONE
The MaxLight Motorised UST draw slider is Bluetooth-enabled. By downloading the controller app on your iPhone/Android phone, all functions, including travel distance control and firmware update, can be managed with a few taps on your smartphone
![](https://www.dhinnovation.co.uk/wp-content/uploads/2024/03/SpaceMaster-Mobile-App-1.jpg)
MAX PAYLOAD UP TO 30KG
Maxlight motorised UST platform supports a payload of up to 30kg which means they are compatible with all home
cinema UST projectors in today’s market.
![](https://www.dhinnovation.co.uk/wp-content/uploads/2024/07/Maxlight-MP-UST-Draw-Slider06.jpg)
![](https://www.dhinnovation.co.uk/wp-content/uploads/2024/07/Maxlight-MP-UST-Draw-Slider07.jpg)
Sturdy and Reliable
Maxlight UST projector platforms are finished in a full aluminium alloy body. A 5-year manufacturer warranty is provided as standard.
Quiet
The super silent motor
produces less than
30dB while the
platform operates.
Synchronised
The platform is fully synchronised with your UST projector through its patented controller unit. When the projector is switched on, the platform will open automatically and vice versa
SPECIFICATIONS
MP02 – 480mm Width with 610mm travel distance
![](https://www.dhinnovation.co.uk/wp-content/uploads/2024/07/MP02.jpg)
EAN Code | 5060885990174 | Max Payload: | 30KG | |
Platform Size (closed) | 480*380*55mm | Packaging Size: | 605*425*95mm | |
Platform Size (fully extended) | 480*610*55mm | Gross Weight: | 10.3KG | |
Power Consumption: | 10W | Net Weight: | 8.5KG | |
Operating Noise Level: | ≤ 30dB | Material: | Aluminium alloy |
MP02 Plus – 600mm Width with 610mm travel distance
![](https://www.dhinnovation.co.uk/wp-content/uploads/2024/07/MP02-Plus.jpg)
EAN Code | 5060885990181 | Max Payload: | 30KG | |
Platform Size (closed) | 600*380*53.5mm | Packaging Size: | 725*425*95mm | |
Platform Size (fully extended) | 600*610*55mm | Gross Weight: | 10.5KG | |
Power Consumption: | 10W | Net Weight: | 9.13KG | |
Operating Noise Level: | ≤ 30dB | Material: | Aluminium alloy |
MP03 Pro – 600mm Width with 800mm travel distance
![](https://www.dhinnovation.co.uk/wp-content/uploads/2024/07/MP03-Pro.jpg)
EAN Code | 5060885990198 | Max Payload: | 30KG | |
Platform Size (closed) | 600*380*57.5mm | Packaging Size: | 725*425*95mm | |
Platform Size (fully extended) | 600*800*57.5mm | Gross Weight: | 14.5KG | |
Power Consumption: | 10W | Net Weight: | 12.65KG | |
Operating Noise Level: | ≤ 30dB | Material: | Aluminium alloy |
